Reactive Observability in Spring Boot 3 with Micrometer

Mario Gray

Since Spring Framework 6/SpringBoot 3, metrics and tracing get handled by Micrometer - a vendor-neutral API for instrumenting code. Micrometer also makes available and sends metrics to aggregators such as Prometheus, InfluxDB, Netflix Atlas and more.

In this guide, we will take a look at the updated support for Micrometer Tracing, which replaces Spring Cloud Sleuth support. There is a great write-up on this, which takes care of explaining a good chunk of details in a WebMVC setting.

In case you are looking to migrate from Sleuth to Micrometer, please see this helpful Wiki page. It describes and gives samples related to the scenarios you will encounter when deciding/making the change from Sleuth to the new Micrometer API.

Start with an Observation example

Let’s start with a quick example demonstrating Micrometer’s Observation API in a thread-friendly setting. For instance, we can use it to observe a Runnable submitted to an Executor.

Create the sample application with the following settings on the Spring Initializr:

Artifact ID:

  • simple-observation

Dependencies:

  • Lombok
  • Actuator

Spring Boot:

  • 3.0.0

Packaging:

  • Jar

Java Version:

  • 17

Type:

  • Maven

The full sample listing follows in ObservationApplication.java:

@Slf4j
@SpringBootApplication
public class ObservationApplication {

 public static void main(String[] args) {
 SpringApplication.run(ObservationApplication.class, args);
 }

	@Bean
	ApplicationListener<ApplicationStartedEvent> doOnStart(ObservationRegistry registry) {
		return event -> generateString(registry);
	}

	public void generateString(ObservationRegistry registry) {
		String something = Observation
				.createNotStarted("server.job", registry)	//1
				.lowCardinalityKeyValue("jobType", "string")	//2
				//3
				.observe(() -> {
					log.info("Generating a String...");
					try {
						Thread.sleep(1000);
					} catch (InterruptedException e) {
						e.printStackTrace();
						return "NOTHING";
					}
					return "SOMETHING";
				});

		log.info("Result was: " + something);
	}
}

A few things are happening in this code:

  1. Create an instance of Observation and bind it to an ObservationRegistry as stated in the Micrometer documentation.
  2. To better observe our invocation, add low cardinality keys. These are keys whose value will have a bounded number of possible values. For high cardinality keys - having unbounded possible values - use the .highCardinalityKeyValue() method.
  3. Rather than manually calling .start() and .stop(), use the observe(Runnable) method to isolate the monitored code in its own Runnable closure. You can also use the observeChecked(CheckedRunnable) for methods that throw Exceptions.

How Micrometer tracing and observation works

An ObservationHandler wraps the Observation lifecycle and execute its methods on lifecycle events. An ObservationHandler reacts only to supported implementations of an Observation.Context - this context passes state between handler methods - and can create all kinds of instrumentation like metrics, spans, or logs by reacting to the lifecycle events of an observation, such as:

  • start - This happens when the Observation#start() method gets called.
  • stop - This happens when the Observation#stop() method gets called.
  • error - This event happens when the Observation#error(exception) method gets called.
  • event - This happens when the Observation#event(event) method gets called.
  • scope started - Observation opens a scope. The scope must be closed when no longer used. Handlers can create thread-local variables on start that get cleared when the scope is complete. This event happens when the Observation#openScope() method gets called.
  • scope stopped - Observation stops a scope. This event happens when the Observation.Scope#close() method gets called.

An observation state diagram (per documentation) looks like:

         Observation          Observation
         Context              Context
 Created ───────────► Started ───────────► Stopped

The state diagram for observation scopes:

               Observation
               Context
 Scope Started ─────────────────► Scope Finished

NOTE: Access to the Observation Docs is essential to gain more details as your needs evolve.

The Spring Boot autoconfiguration creates an ObservationRegistry responsible for the configuration and propagation of Observations. Additionally, we get multiple ObservationHandlers that handle various instrumentation objectives (e.g., tracing, metrics, logging, etc..). As an example, the DefaultMeterObservationHandler provides micrometer Timer and Counter metrics to observations.

Additionally, non-auto-configured handlers exist, such as the ObservationTextPublisher. This handler logs the context during each handled event.

Log observation events by declaring a bean of type ObservationTextPublisher in the main application configuration:

public class ObservationApplication {
 ...
 @Bean
 ObservationTextPublisher otp() {
 	return new ObservationTextPublisher();
 }
}

Execute the application:

mvn spring-boot:run

You will see logs that the ObservationTextPublisher emitted when we execute our ObservationApplication. I’ve removed timestamps and only included one descriptive log line for brevity:

INFO 90538 --- [ main] i.m.o.ObservationTextPublisher : START - name='server.job', contextualName='null', error='null', lowCardinalityKeyValues=[jobType='string'], highCardinalityKeyValues=[], map=[]
INFO 90538 --- [ main] i.m.o.ObservationTextPublisher : OPEN -
name='server.job', contextualName='null', error='null', lowCardinalityKeyValues=
[jobType='string'], highCardinalityKeyValues=[], map=[class io.micrometer.core.instrument.
Timer$Sample='io.micrometer.core.instrument.Timer$Sample@205bed61', class io.micrometer.core.
instrument.LongTaskTimer$Sample='SampleImpl{duration(seconds)=5.60409E-4, duration(nanos)
=560409.0, startTimeNanos=}']
INFO 90538 --- [ main] c.e.o.ObservationApplication : Generating a String...
INFO 90538 --- [ main] i.m.o.ObservationTextPublisher : CLOSE - name='server.job',...]
INFO 90538 --- [ main] i.m.o.ObservationTextPublisher : STOP - name='server.job',...]
INFO 90538 --- [ main] c.e.o.ObservationApplication : Result was: SOMETHING

The ObservationTextPublisher shows each stage an Observation went through, along with some metadata.

Now that we have reviewed the basics, let’s move on and put together an example using the reactive Spring WebFlux and Micrometer.

The reactive Spring Boot 3 sample setup

Let’s create an HTTP Controller application. But, first, go to our second favorite website, the Spring Initializr - start dot spring dot io, and make the following selections:

Dependencies:

  • Webflux
  • Actuator
  • Prometheus
  • Distributed-tracing
  • Lombok

Platform Version:

  • 3.0.0

Packaging:

  • Jar

JVM Version:

  • 17

Type:

  • Maven

Here is a screenshot (for reference) of what the configuration on start.spring.io looks like:

start dot spring io

Alternatively, if you have the curl client installed, you can generate the same application from the command line:

curl -G https://start.spring.io/starter.zip -o observable.zip -d dependencies=webflux,actuator,prometheus,distributed-tracing,lombok -d packageName=com.example.observation \
-d description=Observation%20Demo -d type=maven-project -d language=java -d platformVersion=3.0.0 \
-d packaging=jar -d jvmVersion=17 -d groupId=com.example -d artifactId=observation -d name=observation

Open this project in your favorite IDE and follow along, or simply browse the source for reference. For clarification, you will add dependencies as this guide progresses.

Next, establish basic application properties: app name, server port, and logging format.

application.properties:

spring.application.name=test-service
server.port=8787
spring.main.web-application-type=reactive
logging.pattern.level=%5p [${spring.application.name:},%X{traceId:-},%X{spanId:-}]

A greeting service

The following sample creates an HTTP Controller that calls a service. In this example, we only return a specific payload: Greeting.

The payload is a simple record:

Greeting.java:

record Greeting(String name) {}

The service class uses a latency generator to add dimension to the latency graph seen later.

GreetingService.java:

@Service
class GreetingService {

    private final Supplier<Long> latency = () -> new Random().nextLong(500);

    private final ObservationRegistry registry;

    GreetingService(ObservationRegistry registry) {
        this.registry = registry;
    }

    public Mono<Greeting> greeting(String name) {
        Long lat = latency.get();
        return Mono
                .just(new Greeting(name))
                .delayElement(Duration.ofMillis(lat))
                ;
    }
}

Add a RestController endpoint

In this Controller, you will define a GetMapping that exposes an endpoint to return a greeting. The greeting will contain a name derived from the path parameter {name}:

@RestController
class GreetingController {
    private final GreetingService service;

    GreetingController(GreetingService service) {
        this.service = service;
    }

    @GetMapping("/hello/{name}")
    public Mono<Greeting> greeting(@PathVariable("name") String name) {
        return service
                .greeting(name);
    }
}

TIP: WebFluxObservationAutoConfiguration is the autoconfiguration class for observation in WebFlux. It includes all of the ObservationHandler and WebFilter instances needed to observe (draw traces and meters from) HTTP requests and responses.

Reactive stream observation with reactor-core-micrometer

Project reactor comes with built-in support for Micrometer instrumentation implementations.

Use the reactive tap operator to instrument the streams in this sample. The tap operator uses a stateful per-subscription SignalListener to manage the state of the Observation in progress.

To get a micrometer signal listener, import the reactor-core-micrometer dependency. Note that this API also puls in the context-propagation library to propagate observability information along the lifetime of the reactive stream.

Here are the additions to pom.xml that enable Micrometer Reactive Stream integration:

		<dependency>
			<groupId>io.projectreactor</groupId>
			<artifactId>reactor-core-micrometer</artifactId>
		</dependency>

The reactor.core.observability.micrometer.Micrometer API provides the StreamListener to observe a stream. In addition, the StreamListener allows ObservationHandlers to respond to the observed lifecycle of a stream. This example observes the stream using the Micrometer.observation API that hooks into Micrometer’s Observation framework.

Modify the GreetingService from earlier to use the Observation API:

        return Mono
                .just(new Greeting(name))
                .delayElement(Duration.ofMillis(lat))
                .name("greeting.call")		//1
                .tag("latency", lat > 250 ? "high" : "low")	//2
                .tap(Micrometer.observation(registry));	//3

This block will track a span underneath the Rest Controller invocation. The main additions are as follows:

  1. Use .name to specify the Observation name.
  2. Add low cardinality tags and attributes to the measurements with .tag. The example latency string is either ‘high’ or ’low’.
  3. Produce the Observation-specific signal listener for the tap operator. This operator covers the entire length of the reactive stream.

Read more about Micrometer Metrics in streams in the Micrometer Observation Docs.

Building an OSS observability stack

There are many pre-existing SAAS observability suites out there, of which VMWare’s Wavefront is one good option. In addition, SAAS observability suites are easier to set up and integrate. But, in the interest of exploration, we’re going to manually assemble a solution using open-source components: Tempo, Loki, Grafana, and Prometheus.

Next, configure a Grafana dashboard to view logs, traces, and metrics in one location. The following additional projects are required to get started:

There are pre-configured instances of Prometheus, Grafana, Tempo, and Loki located within the infra directory. Docker Compose scripts and server configuration files are provided in this directory. Bring the whole thing up with the following command:

cd infra/
docker compose up

This startup may take a minute or two since it may need to download images over the network. So have a few sips of that tea, coffee, or water you might have on hand! Next, move on and examine this infrastructure as it relates to the example app.

Prometheus Setup

On the application-facing side of Prometheus, you will configure a set of scrape configurations for ingesting the application’s /actuator/prometheus endpoint.

The specific scrape configuration for the example application is listed below:

global:
    scrape_interval: 2s
    evaluation_interval: 2s

scrape_configs:
    - job_name: 'prometheus'
      static_configs:
          - targets: ['host.docker.internal:9090']
    - job_name: 'apps'
      metrics_path: '/actuator/prometheus'
      static_configs:
        - targets: ['host.docker.internal:8787']

Enable the Prometheus Actuator endpoint

Configure the application to expose the specific /actuator/prometheus endpoint used for Prometheus’s scraping process:

In application.properties, add:

management.endpoints.web.exposure.include=prometheus

Micrometer supports publishing histograms for computing percentile distributions with the management.metrics.distribution.percentiles-histogram property. We can apply a per Meter customization to the WebFlux or MVC http.server.requests metrics and produce the target percentiles histogram as follows:

In application.properties, add:

management.metrics.distribution.percentiles-histogram.http.server.requests=true

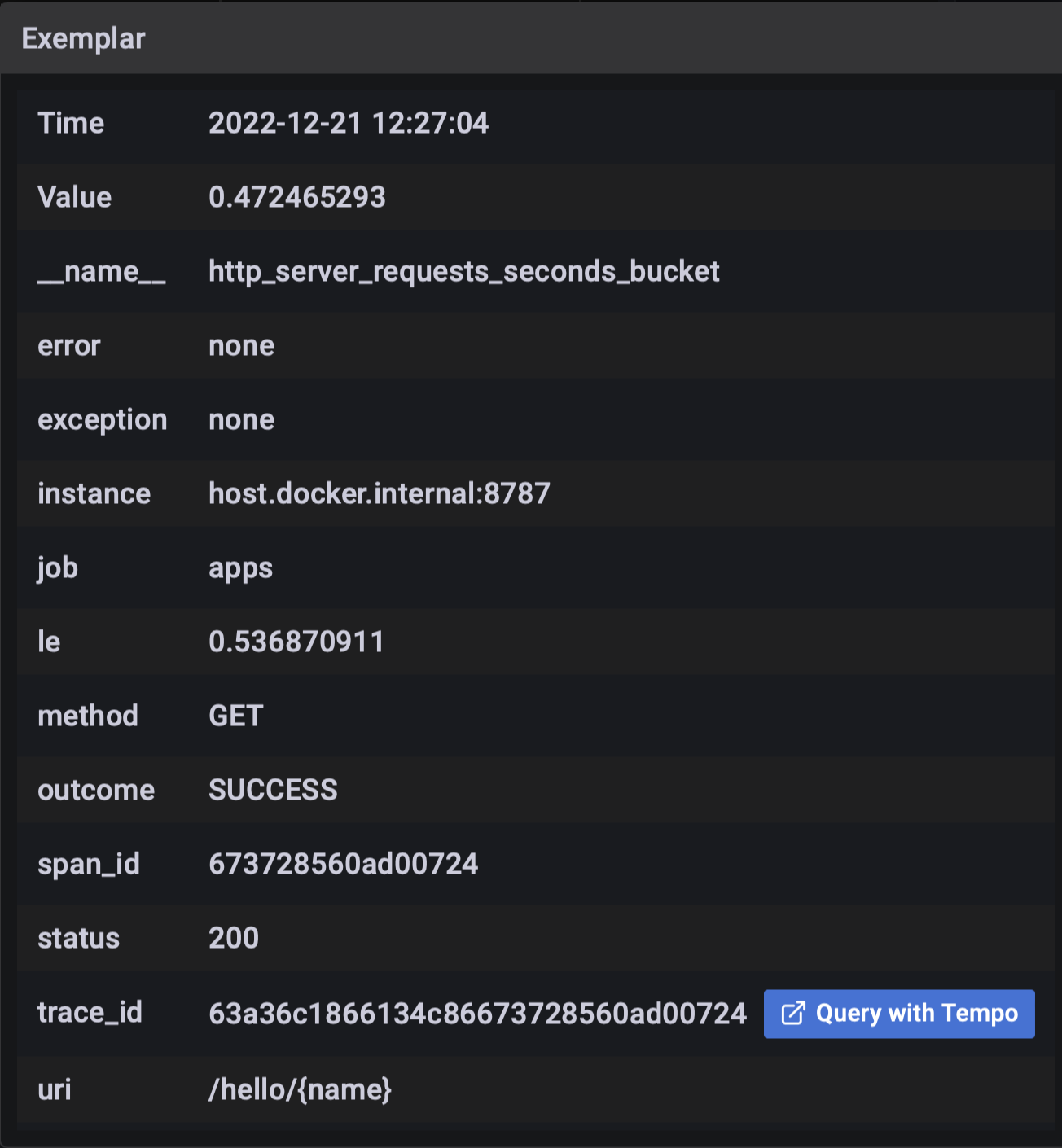

NOTE: percentiles histograms are required for Prometheus Exemplars to function. Percentile histograms do not affect systems that do not support histogram-based percentile approximations.

Configure Loki log aggregation

Grafana queries Loki to add log correlation with traces and metrics. To apply this behavior to the application, configure a Logback appender to emit logs directly to Loki. This appender - com.github.loki4j.logback.Loki4jAppender - comes from Loki4J.

To make this work, use the loki-logback-appender dependency:

		<dependency>
			<groupId>com.github.loki4j</groupId>
			<artifactId>loki-logback-appender</artifactId>
			<version>1.3.2</version>
		</dependency>

Place logback-spring.xml into src/main/resources of the project and ensure the appender for Loki has the correct URL configured.

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
    <include resource="org/springframework/boot/logging/logback/base.xml" />
    <springProperty scope="context" name="appName" source="spring.application.name"/>

    <appender name="LOKI" class="com.github.loki4j.logback.Loki4jAppender">
        <http>
            <url>http://localhost:3100/loki/api/v1/push</url>
        </http>
        <format>
            <label>
                <pattern>app=${appName},host=${HOSTNAME},traceID=%X{traceId:-NONE},level=%level</pattern>
            </label>
            <message>
                <pattern>${FILE_LOG_PATTERN}</pattern>
            </message>
            <sortByTime>true</sortByTime>
        </format>
    </appender>

    <root level="INFO">
        <appender-ref ref="LOKI"/>
    </root>
</configuration>

WARNING: For illustrative purposes, this log configuration includes the ’traceID’ label representing many values. The Loki Doc states: “High cardinality causes Loki to build a huge index (read: expensive!) and to flush thousands of tiny chunks to the object store (read: slow).”. Therefore, do not use this configuration in production.

Tempo configuration

This example uses Micrometer Tracing to ship trace data to Tempo. The Openzipkin Brave and Micrometer bridge for Brave ships the trace data to Tempo’s Zipkin receiver.

Use local filesystem storage since provisioning block storage is a bit complex for this example.

The Zipkin receiver requires the default TCP port 9411 (Zipkin). This configuration uses the “Push with HTTP” option per Tempo documentation.

tempo-local.yaml:

server:
    http_listen_port: 3200

distributor:
    receivers:
        zipkin:

storage:
    trace:
        backend: local
        local:
            path: /tmp/tempo/blocks

Ensure every trace gets to Zipkin endpoints by adding the following lines to application.properties:

management.tracing.sampling.probability=1.0

Grafana dashboards

Grafana provisions external data with configuration from infra/docker/grafana/provisioning/datasources/datasource.yml. The following datasource configuration tells Grafana where to find each external source of data:

apiVersion: 1

datasources:
    - name: Prometheus
      type: prometheus
      access: proxy
      url: http://host.docker.internal:9090
      editable: false
      jsonData:
        httpMethod: POST
        exemplarTraceIdDestinations:
          - name: trace_id
            datasourceUid: 'tempo'
    - name: Tempo
      type: tempo
      access: proxy
      orgId: 1
      url: http://tempo:3200
      basicAuth: false
      isDefault: true
      version: 1
      editable: false
      apiVersion: 1
      uid: tempo
      jsonData:
          httpMethod: GET
          tracesToLogs:
              datasourceUid: 'loki'
    - name: Loki
      type: loki
      uid: loki
      access: proxy
      orgId: 1
      url: http://loki:3100
      basicAuth: false
      isDefault: false
      version: 1
      editable: false
      apiVersion: 1
      jsonData:
          derivedFields:
              -   datasourceUid: 'tempo'
                  matcherRegex: \[.+,(.+?),
                  name: TraceID
                  url: $${__value.raw}

This dashboard configuration, located at infra/docker/grafana/provisioning/dashboards/logs_traces_metrics.json is called logs_traces_metrics. The code to this dashboard code was borrowed from the observability blog post on spring.io.

{
    "annotations": {
        "list": [
            {
                "builtIn": 1,
                "datasource": {
                    "type": "grafana",
                    "uid": "-- Grafana --"
                },
                "enable": true,
                "hide": true,
                "iconColor": "rgba(0, 211, 255, 1)",
                "name": "Annotations & Alerts",
                "target": {
                    "limit": 100,
                    "matchAny": false,
                    "tags": [],
                    "type": "dashboard"
                },
                "type": "dashboard"
            }
        ]
    },
    "editable": true,
    "fiscalYearStartMonth": 0,
    "graphTooltip": 0,
    "id": 6,
    "iteration": 1654517000502,
    "links": [],
    "liveNow": false,
    "panels": [
        {
            "datasource": {
                "type": "loki",
                "uid": "loki"
            },
            "description": "",
            "gridPos": {
                "h": 10,
                "w": 23,
                "x": 0,
                "y": 0
            },
            "id": 2,
            "options": {
                "dedupStrategy": "none",
                "enableLogDetails": true,
                "prettifyLogMessage": true,
                "showCommonLabels": true,
                "showLabels": true,
                "showTime": true,
                "sortOrder": "Ascending",
                "wrapLogMessage": true
            },
            "targets": [
                {
                    "datasource": {
                        "type": "loki",
                        "uid": "loki"
                    },
                    "editorMode": "builder",
                    "expr": "{traceID=\"$traceID\"}",
                    "queryType": "range",
                    "refId": "A"
                }
            ],
            "title": "Logs with trace ID $traceID",
            "type": "logs"
        },
        {
            "datasource": {
                "type": "tempo",
                "uid": "tempo"
            },
            "description": "",
            "gridPos": {
                "h": 15,
                "w": 23,
                "x": 0,
                "y": 10
            },
            "id": 6,
            "targets": [
                {
                    "datasource": {
                        "type": "tempo",
                        "uid": "tempo"
                    },
                    "query": "$traceID",
                    "queryType": "traceId",
                    "refId": "A"
                }
            ],
            "title": "Trace View for trace with id $traceID",
            "type": "traces"
        },
        {
            "datasource": {
                "type": "prometheus",
                "uid": "PBFA97CFB590B2093"
            },
            "fieldConfig": {
                "defaults": {
                    "color": {
                        "mode": "palette-classic"
                    },
                    "custom": {
                        "axisLabel": "",
                        "axisPlacement": "auto",
                        "barAlignment": 0,
                        "drawStyle": "line",
                        "fillOpacity": 0,
                        "gradientMode": "none",
                        "hideFrom": {
                            "legend": false,
                            "tooltip": false,
                            "viz": false
                        },
                        "lineInterpolation": "linear",
                        "lineWidth": 1,
                        "pointSize": 5,
                        "scaleDistribution": {
                            "type": "linear"
                        },
                        "showPoints": "auto",
                        "spanNulls": false,
                        "stacking": {
                            "group": "A",
                            "mode": "none"
                        },
                        "thresholdsStyle": {
                            "mode": "off"
                        }
                    },
                    "mappings": [],
                    "thresholds": {
                        "mode": "absolute",
                        "steps": [
                            {
                                "color": "green",
                                "value": null
                            },
                            {
                                "color": "red",
                                "value": 80
                            }
                        ]
                    },
                    "unit": "s"
                },
                "overrides": []
            },
            "gridPos": {
                "h": 10,
                "w": 23,
                "x": 0,
                "y": 25
            },
            "id": 4,
            "options": {
                "legend": {
                    "calcs": [],
                    "displayMode": "list",
                    "placement": "bottom"
                },
                "tooltip": {
                    "mode": "single",
                    "sort": "none"
                }
            },
            "targets": [
                {
                    "datasource": {
                        "type": "prometheus",
                        "uid": "PBFA97CFB590B2093"
                    },
                    "editorMode": "code",
                    "exemplar": true,
                    "expr": "histogram_quantile(1.00, sum(rate(http_server_requests_seconds_bucket{uri=~\".*\"}[$__rate_interval])) by (le))",
                    "legendFormat": "max",
                    "range": true,
                    "refId": "A"
                },
                {
                    "datasource": {
                        "type": "prometheus",
                        "uid": "PBFA97CFB590B2093"
                    },
                    "editorMode": "code",
                    "exemplar": true,
                    "expr": "histogram_quantile(0.99, sum(rate(http_server_requests_seconds_bucket{uri=~\".*\"}[$__rate_interval])) by (le))",
                    "hide": false,
                    "legendFormat": "tp99",
                    "range": true,
                    "refId": "B"
                },
                {
                    "datasource": {
                        "type": "prometheus",
                        "uid": "PBFA97CFB590B2093"
                    },
                    "editorMode": "code",
                    "exemplar": true,
                    "expr": "histogram_quantile(0.95, sum(rate(http_server_requests_seconds_bucket{uri=~\".*\"}[$__rate_interval])) by (le))",
                    "hide": false,
                    "legendFormat": "tp95",
                    "range": true,
                    "refId": "C"
                }
            ],
            "title": "latency for All",
            "type": "timeseries"
        }
    ],
    "schemaVersion": 36,
    "style": "dark",
    "tags": [],
    "templating": {
        "list": [
            {
                "current": {
                    "selected": false,
                    "text": "0003776c79e02b6c",
                    "value": "0003776c79e02b6c"
                },
                "datasource": {
                    "type": "loki",
                    "uid": "loki"
                },
                "definition": "label_values(traceID)",
                "hide": 0,
                "includeAll": false,
                "label": "Trace ID",
                "multi": false,
                "name": "traceID",
                "options": [],
                "query": "label_values(traceID)",
                "refresh": 1,
                "regex": "",
                "skipUrlSync": false,
                "sort": 0,
                "type": "query"
            }
        ]
    },
    "time": {
        "from": "now-15m",
        "to": "now"
    },
    "timepicker": {},
    "timezone": "",
    "title": "Logs, Traces, Metrics",
    "uid": "szVLMe97z",
    "version": 7,
    "weekStart": ""
}

Observing the WebFlux Application

Execute the application as-is:

mvn spring-boot:run

Prometheus scrapes the /actuator/prometheus endpoint, populating metrics when the application runs. Generate traffic to the application by executing this script:

while true; do http :8787/hello/spring-boot-3 ; sleep 1; done

Run that on your local Unix-compatible shell. You could use tools like ab alternatively. This script uses curl to call the /hello endpoint every second. Allow it to run for a minute or two so Prometheus can collect metrics. Go to http://localhost:3000/dashboards and select General, then select the Logs, Traces, Metrics dashboard. You will see a screen resembling the following:

dashboard 1st

Look under ’latency for all’ to see the observed latencies. There are free-floating yellow/green X’s, some are circled in red - these are the Prometheus Exemplars correlating metrics with traces. The Prometheus Exemplar data is located by hovering over an ‘X’ and revealing the Exemplar view box.

exemplar

Rather than clicking ‘Query with Tempo,’ enter a trace ID in the text box labeled ‘Trace ID’ to reveal logs and traces correlated to that trace ID.

The ‘Trace View’ panel displays trace details correlated by the searched trace ID. The ‘Logs with trace ID’ panel displays logs having that trace ID.

dashboard 2nd

Finally, we can see that the Greeting service call has its distinct span tied to the parent HTTP request.

dashboard full

Conclusion

You configured a Spring Boot 3 reactive application with Micrometer. You learned how Micrometer ‘observes’ method calls and Reactive stream subscriptions to derive metric and trace data. An Open Source dashboard stack allows us to demonstrate the effectiveness of this configuration. Micrometer now supports both metrics and traces. In addition, you integrated Prometheus Exemplars.
